Contemporary Roof Lantern 1500 x 2250mm

THE ULTIMATE SLIM ROOF LANTERN

✓ Fitter friendly and quick to install.
✓ Easy-to-follow installation instructions to help guide the less experienced installer during the build.

APPEARANCE

✓ Slimmer – MORE SKY LESS ROOF TM
✓ 40mm internal ridge, rafter & hip –slimmer than the rest
✓ No boss or Y cover
✓ Variable dual roof pitch – 17 degrees to 35 degrees
✓ Equally proportioned

STRENGTH & SECURITY

✓ Tested to wind pressure of up to 1.32 KNm-2 which covers the majority of exposed sites in the UK.
✓ Tested to snow loads up to 1.0 KNm-2.
✓ Secure pressure-plated system. Others only use a clip-on cap which can be removed easily by intruders.
✓ Fitter friendly with roof fixings from above.

THERMAL PERFORMANCE

✓The ridge and rafter have a U value of 1.5 w/m2k, leading the market on thermal efficiency.
✓ Thermal break in ridge and rafters prevents cold from getting to the inside of the rafter.
✓Ringbeam includes a polyamide thermal break.
✓ Best U Value available for double glazing 1.0 W/m2k.
✓Zero degrees outside, inside profile temperature is 18 degrees centigrade

SOLAR CONTROL GLASS

Imagine changing your home’s entire outlook with a single window. Our energy-efficient solar control glass provides a premium view, improved thermal insulation, and unmatched security. Roof lanterns will upgrade the look of any room in your house and deliver years of visual performance. A combination of low emissivity inner glass and argon gas filling means the solar control glass reduces the thermal transmission by half compared to ordinary double glazing, which reduces energy costs and keeps glazed roof rooms warmer in winter.

SELF-CLEANING GLASS

Tired of cleaning your home’s exterior window glass? Now there is a solution with self-cleaning roof lanterns! The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning. This can save you time and money in the long run.

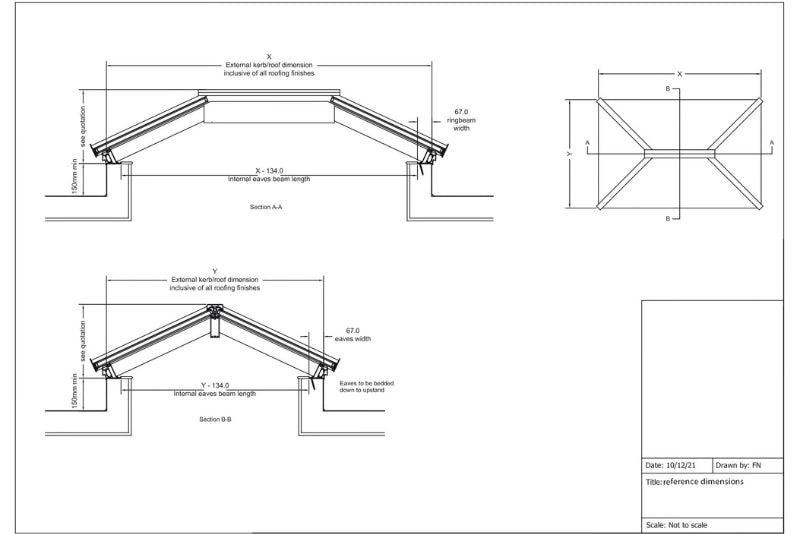

TECHNICAL SPECIFICATION

High technology solutions for today’s roofs. All roof double-glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards, accredited to BS EN 1279 parts 2 & 3 and BS EN 12150.
