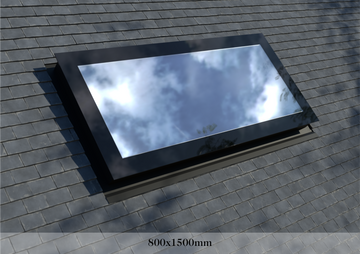

Pitched Roof Skylight 800 x 1500mm
Our pitched roof skylights are manufactured to the highest standard making them frameless from the inside and out. They are easily installed with lead flashing, that’s cut on site that is suitable for all roofs. As they are frameless internally they let in more light.

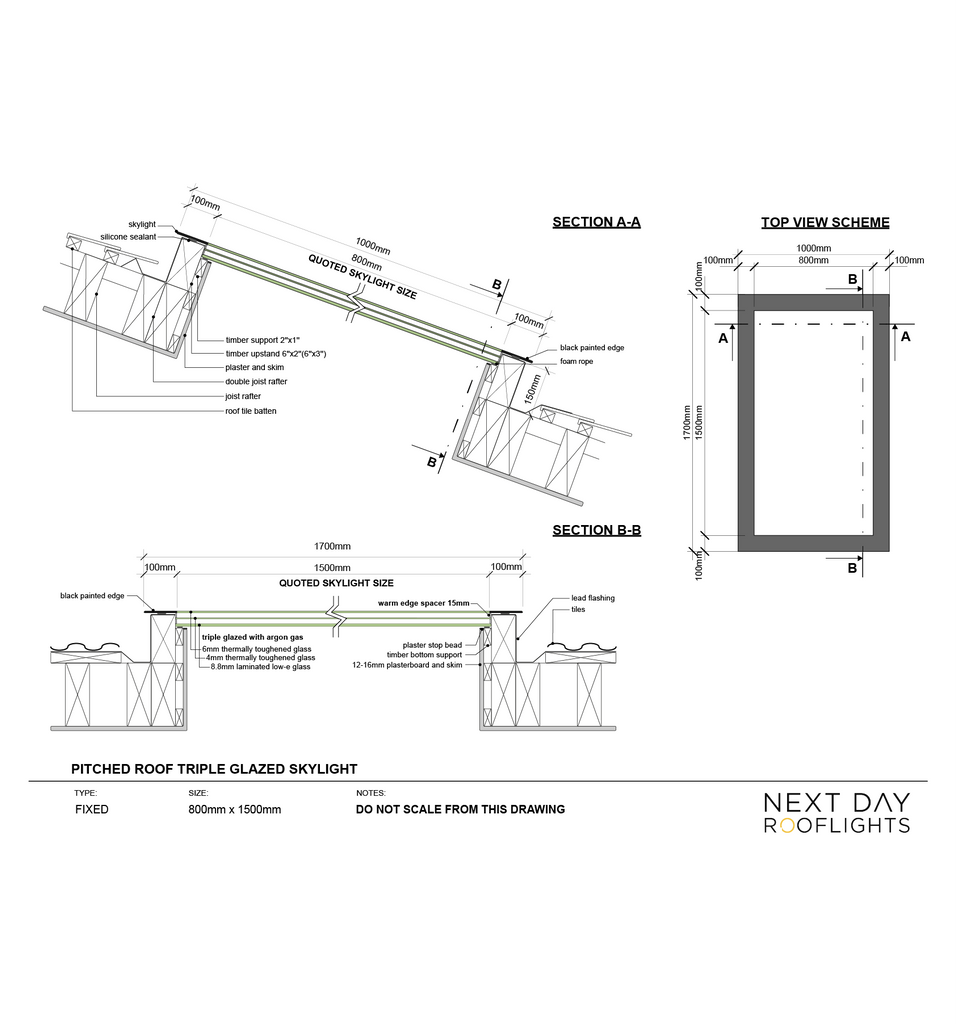

This high-performance, a non-opening frameless skylight is triple glazed with 6mm toughened, self-cleaning glass and a U Value of only 0.9 W/m²K. The internal quoted glass size is 800 x 1500mm, see the structural diagram below.
When purchasing a pitched roof skylight for a tiled roof from us it it very simple.
All our skylight come triple glazed as standard and have solar protection.
The up stand is formed with the same opening as you can see on our drawings.
Specifications
Glazing Type: Triple Glazed
Internal Glass Size (QUOTED): 800 x 1500mm
External Glass Size: 1000 x 1700mm
Top Glass Pane: 6mm BS EN 12150 Thermally Toughened Glass
Spacer Type: 15mm Black Warm Edge
Air Gap: 15mm 90% Argon Filled
Middle Glass Pane: 4mm BS EN 12150 Thermally Toughened Glass
Bottom Glass Pane: 44.2 Low E; BS EN 14449 Laminated Glass
U Value: 0.9 W/m²K
Net Weight: 61.50kg
Self-Cleaning: YES
UV Protected: YES
Clear Tint
When it comes to choosing a roof light for your home, we know that safety is an important deciding factor.
This product conforms to British Standards & Building Regulations and has all Safety Markings.
It is CE marked which is a certification mark that indicates conformity with the relevant EU directives and standards for products sold within Europe.
Additional Information
Our Skylights can be installed at a maximum pitch of 45 degrees.
- Best Price
- 20 Years Warranty
- Guarantee Payment Safety
- Self-Cleaning
- Clear Tint
- UV Protected
- Free Delivery within London (M25)
- Аll Glass Panels
- Safety Toughened and Laminated Glass
- Made In EU
- London Based Stock
- Quick and easy installation
- Step By Step installation guide
- 24/7 technical helpline
Pallet Dimensions 85 × 10 × 175cm
Colour: Clear
Size: 800 x 1500mm
