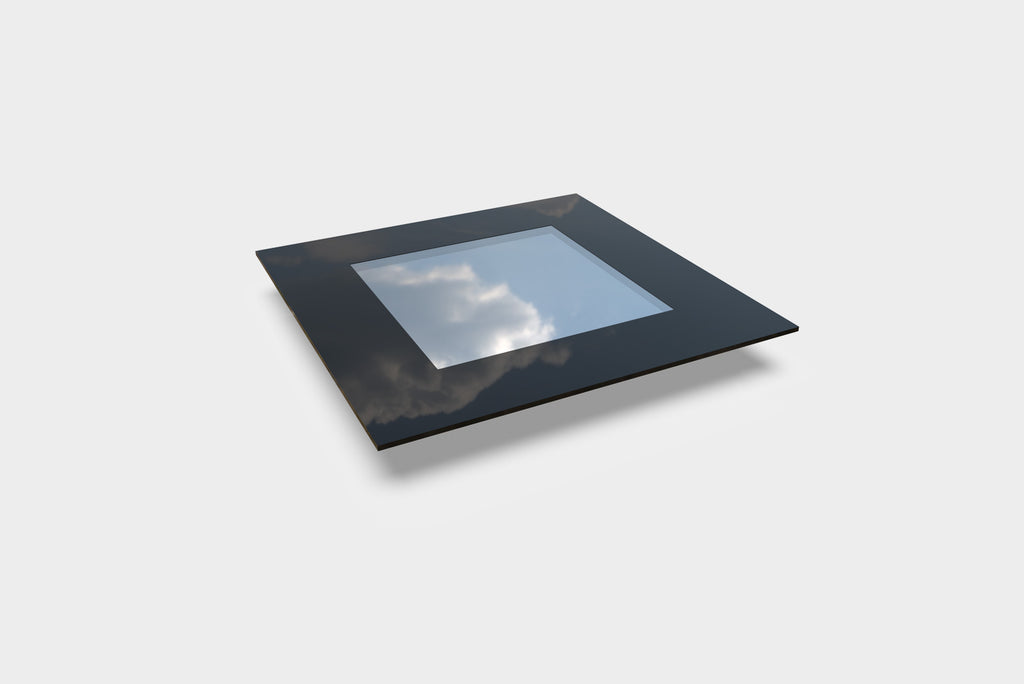

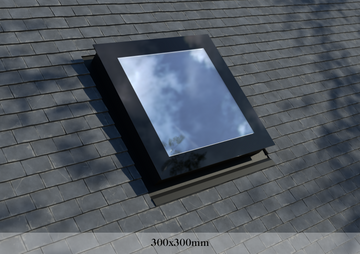

Pitched Roof Skylight  300 x 300 mm

Our pitched roof skylights are manufactured to the highest standard making them frameless from the inside and out. They are easily installed with lead flashing, that’s cut on site that is suitable for all roofs. As they are frameless internally they let in more light.

This high-performance, a non-opening frameless skylight is triple glazed with 6mm toughened, self-cleaning glass and a U Value of only 0.9 W/m²K. The internal quoted glass size is 300 x 300 mm, see the structural diagram below.

When purchasing a pitched roof skylight for a tiled roof from us it it very simple.

All our skylight come triple glazed as standard and have solar protection.

The up stand is formed with the same opening as you can see on our drawings

Specifications

Glazing Type: Triple Glazed

Internal Glass Size (QUOTED): 300 x 300mm

External Glass Size: 500 x 500mm

Top Glass Pane: 6mm BS EN 12150 Thermally Toughened Glass

Spacer Type: 15mm Black Warm Edge

Air Gap: 15mm 90% Argon Filled

Middle Glass Pane: 4mm BS EN 12150 Thermally Toughened Glass

Spacer Type: 15mm Black Warm Edge

Air Gap: 15mm 90% Argon Filled

Bottom Glass Pane: 44.2 Low E;  BS EN 14449 Laminated Glass

U Value: 0.9 W/m²K

Net Weight: 6.45kg

Self-Cleaning: YES

UV Protected: YES

Clear Tint

When it comes to choosing a roof light for your home, we know that safety is an important deciding factor.

This product conforms to British Standards & Building Regulations and has all Safety Markings.

It is CE marked which is a certification mark that indicates conformity with the relevant EU directives and standards for products sold within Europe.

Additional Information

Our Skylights can be installed at a maximum pitch of 45 degrees.

 Colour: Clear
